Overview
PEAK series compact automatic Video Measurement machine is an economical general-purpose measurement product with a simple and stable design concept created by HANSVUE.
Features
-
-
- Peak Video Measuring Machine is a fully automatic with 3 axis automatic motorized control
- Peak Video Measuring Machine is Equipped with powerful software that comes with GD & T Features
- Economical; integrated design enable us to manufacture at a lower cost without jeopardizing
- The high precision granite base of grade 000 is adopted to ensure the high stability and accuracy
- A variety of non contact sensors and fast fixing systems can be selected to meet different measurement requirements of different customers
DIAGRAM
ACCESSORIES
Customize your device
Specification

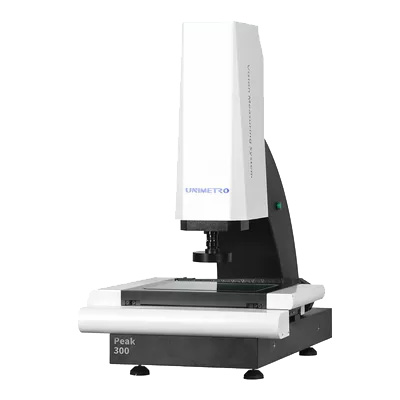

Product Name: PEAK Series Full CNC Vision Measuring Machine
Model:
PEAK 300
PEAK 400
PEAK 500
X/Y axis range:
300x200mm
400x300mm
500x400mm
Z-axis range: 200mm (can be increased according to customer demand)
Linear scale: High precision glass grating ruler, accuracy: 0.5um
Control System: Joystick control, mouse operation, automatic detection program
Measuring Accuracy: ≤3+L/200um
Repeatability: ±3um
Camera: Industrial grade color CCD camera
Image system Lens: 0.7-4.5X High resolution manual zoom lens
Illumination:
Contour light: LED parallel contour light source (optional with green light source)
Surface light: Programmable LED 8-zone ring surface light
(optional: 40 zone annular light, coaxial light, lifting color light source)
Magnification: 18-195X (According to the different models of the selected camera, its magnification will change; the actual magnification is subject to the actual measurement data)
Field of View: 8.1~1.3mm (According to the different matching schemes of camera and lens, the field of view will change accordingly, and the actual field of view is subject to the measured data)
Measuring Software: INSPECT 3D Full Automatic Vision Software
Working distance: 90mm
Max Loading: 25Kg
Power supply: 220V/50Hz/10A
Dimension(WDH):
PEAK 300: 8106101055mm
PEAK 400: 9607101075mm
PEAK 500: 111008101095mm
Weight:
PEAK 300: 330Kg
PEAK 400: 380Kg
PEAK 500: 420kg
